What is folding solar panel and how is it different from traditional solar panel?

Looking for a portable solar solution that can go anywhere with you? Folding solar panels are revolutionizing how we harness solar energy on the go.

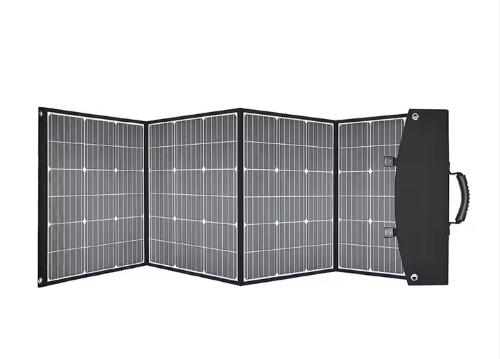

Folding solar panels are portable, flexible solar systems with hinged sections that fold like a briefcase, unlike rigid traditional panels. They offer 18-23% efficiency versus 15-20% for traditional panels, weigh 70% less, and are 90% more compact when folded, but typically cost 30-50% more per watt.

The moment I first unpacked a folding solar panel at a remote campsite, I realized how dramatically solar technology had evolved. Where we once needed heavy rooftop installations, we now have power stations that fit in a backpack - but is this convenience worth the premium?

What application scenarios are folding solar panels suitable for?

Ever been stuck with dead devices in the middle of nowhere?

Folding solar panels excel in mobile scenarios: camping (charging phones/lights), RV trips (12V systems), emergency power (disaster relief), military operations, and temporary worksites. Their portability solves power needs where traditional panels can't be installed.

When to Choose Folding Over Traditional Panels:

1. Adventure Travel:

   • Powers 2 phones + GPS daily with 100W panel
   • Weighs 4.5 lbs vs 40+ lbs for equivalent rigid panels
   • Sets up in 60 seconds

2. Specialized Applications:

   • Marine use (saltwater-resistant models)
   • Disaster response (instant deployment)
   • Film production (mobile power)

3. Temporary Installations:

   • Construction sites (no permit requirements)
   • Farmers markets (folds away post-event)
   • Seasonal cabins (winter storage ease)

Scenario	Recommended Size	Daily Output	Traditional Panel Alternative?
Backpacking	60W	240Wh	No - too heavy
RV Supplement	200W	800Wh	Possible but less convenient
Emergency Kit	100W	400Wh	Impractical

Pro Tip: Look for panels with USB-C PD outputs (like BioLite 100W) for direct device charging without power banks.

Will the power generation efficiency of folding solar panels be worse than fixed ones?

Can portable really compete with rooftop installations?

Premium folding panels now match fixed panels at 22-23% efficiency thanks to monocrystalline cells, though cheaper models using polycrystalline may be 15-18% efficient. Real-world yields are typically 10-15% lower due to suboptimal positioning.

Efficiency Factors Compared:

1. Cell Technology:

   • Best folding: SunPower Maxeon (23%)
   • Standard roof panels: 19-21%
   • Difference narrowing yearly

2. Performance in Motion:

   • Vehicle-mounted folding panels yield 85% of stationary
   • Integrated MPPT controllers help compensate

3. Key Limitations:

   • Less heat dissipation (no roof spacing)
   • More frequent partial shading
   • Average 12% daily output loss vs optimally angled fixed panels

Efficiency Benchmark Test (Noon, July):

Panel Type	Rated Wattage	Actual Output	% of Rated Capacity
Foldable (Monocrystalline)	100W	89W	89%
Fixed Roof (Polycrystalline)	100W	83W	83%
Budget Foldable (Poly)	100W	72W	72%

Data Source: Outdoor Gear Lab 2023 Solar Challenge

Verdict: With premium models, efficiency concerns are largely outdated - the real compromise is in total daily harvest due to tracking limitations.

How do folding solar panels connect with mobile power or energy storage batteries?

Worried about how to store all that solar energy on the go?

Folding panels connect to power stations via MC4 cables (for solar generators) or all-in-one systems with integrated batteries. Modern setups feature smart IC chips that auto-detect 12V/24V systems and optimize charging curves for LiFePO4 batteries.

Connection Methods Demystified:

1. Direct Device Charging:

   • USB ports (5V/2.4A standard)
   • USB-C PD (up to 100W)
     Devices: Phones, tablets, DSLR cameras

2. Power Station Integration:

   • MC4 to XT60 cables (for EcoFlow/Bluetti)
   • Anderson connectors (for Goal Zero)
     Capacity: 300Wh-2kWh power stations

3. Deep Cycle Battery Systems:

   • PWM vs MPPT controllers
   • 12V vs 24V configurations
     Ideal for: RV, marine, off-grid cabins

Charging Speed Comparison (200W Panel):

Battery Type	0-80% Charge Time	Recommended Controller
Power Station (Li-ion)	3.5 hrs	Built-in MPPT
Car Battery (Lead-acid)	6-8 hrs	20A PWM
LiFePO4 (100Ah)	4-5 hrs	30A MPPT

Pro Tip: For RV use, the Renogy 200W suitcase kit with Voyager controller maintains optimal battery health with temperature compensation.

Conclusion

Folding solar panels bridge the gap between convenience and performance, offering 85-90% of traditional panel efficiency in a portable package ideal for mobile power needs and temporary installations - just budget 30% more for quality models that last.
