What is a photovoltaic energy storage system?
Solar panels capture sunlight, but where does extra energy go? A photovoltaic energy storage system provides that crucial backup power solution for homes and businesses.

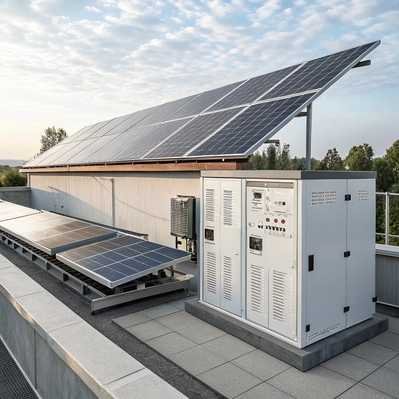

A photovoltaic energy storage system stores excess solar energy in batteries for later use, ensuring power availability during outages or nighttime. These systems typically combine solar panels, charge controllers, batteries, and inverters to create a complete off-grid or hybrid power solution.
Every day, solar panels produce more electricity than we can immediately use. Without storage, this clean energy goes to waste. Let's explore how energy storage transforms solar systems into reliable 24/7 power sources.
What is hybrid photovoltaic system?
Why choose between grid power and solar when you can have both? Hybrid systems solve the limitations of traditional solar setups.

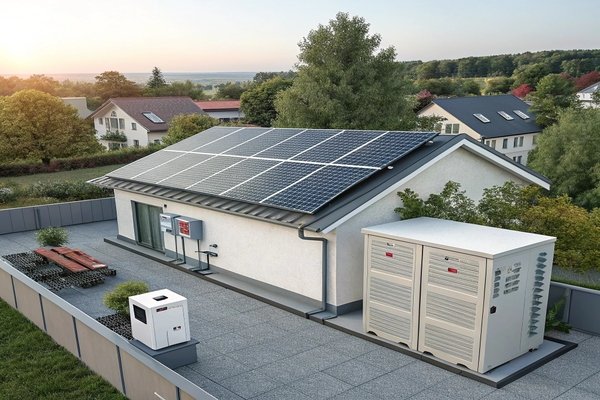

A hybrid photovoltaic system connects solar panels to both the electrical grid and battery storage, providing continuous power while allowing energy sharing with the utility company. This setup offers grid stability while maintaining backup power during outages.
Components of a hybrid system
- Solar panels: Convert sunlight to DC electricity
- Hybrid inverter: Manages power flow between components
- Battery bank: Stores excess solar energy
- Grid connection: Provides backup when needed
- Monitoring system: Tracks energy production and usage
Key benefits:
- Energy independence during outages
- Reduced electricity bills through net metering
- Optimized self-consumption of solar power
- Longer equipment lifespan through smart charging
Battery capacity options:
| Daily Usage | Recommended Capacity |
|---|---|
| 5-10 kWh | 10 kWh battery |
| 10-20 kWh | 15 kWh battery |
| 20-30 kWh | 25 kWh battery |
System sizes should match your energy consumption patterns for optimal performance.
What is needed for a hybrid solar system?
Building a hybrid system requires careful planning. The right components make all the difference between constant power and frustrating limitations.
A complete hybrid solar system needs solar panels, hybrid inverter, battery storage, charge controller, monitoring system, and proper safety equipment. Proper sizing of each component ensures reliable performance and maximum energy savings.
Essential equipment checklist
- Solar panels (300-400W each)
- Hybrid inverter (matches system voltage)
- Lithium batteries (LiFePO4 recommended)
- MPPT charge controller
- Energy monitoring software
- Circuit breakers and surge protection
- Mounting hardware and wiring
Installation considerations:
- Roof orientation and tilt angle
- Local climate conditions
- Electrical load requirements
- Future expansion plans
- Local regulations and permits
How do you size a hybrid solar system?
An oversized system wastes money, while undersized systems disappoint. Proper sizing balances cost with performance.
To size a hybrid solar system, calculate your daily energy usage, determine solar panel requirements based on sunlight hours, and select battery capacity for desired backup duration. Typical residential systems range from 5kW to 10kW with 10-20kWh storage.
Step-by-step sizing guide
- Analyze electricity bills (kWh usage)
- Calculate daily consumption (divide monthly by 30)
- Determine solar hours (location-specific)
- Size solar array (daily usage ÷ solar hours)
- Choose battery capacity (days of autonomy desired)
Example calculation for 20kWh daily use:
| Factor | Calculation | Result |
|---|---|---|
| Daily usage | From bills | 20 kWh |
| Peak sun hours | Local data | 4.5 hours |
| Solar array size | 20 ÷ 4.5 | 4.44 kW |
| Battery capacity | 20 x 2 (days backup) | 40 kWh |
Always add 20-30% buffer for efficiency losses and future needs.
Conclusion
Photovoltaic energy storage systems transform solar power into reliable 24/7 electricity. Properly designed hybrid systems provide energy security
